Searching for logs with tagged events

In the previous step, you ran a tagger against a batch of logs. You can search for logs containing event information by searching for the string that the tagger wrote to the Environmental Anomaly field — Temperature > 28.

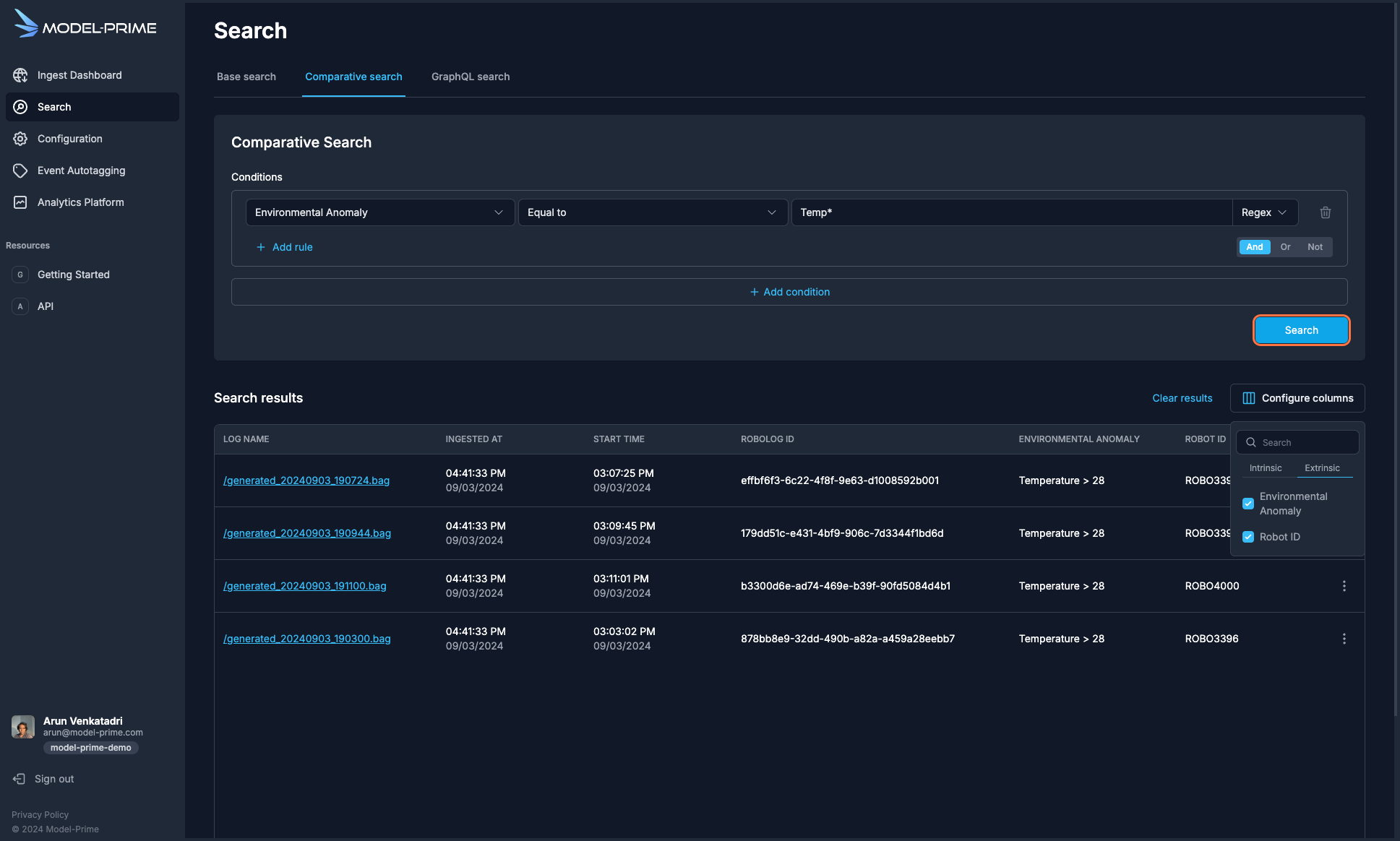

1. Navigate to the Search page by clicking on Search in the left navigation menu.

2. Click on the Comparative search tab.

3. In the Conditions section, click on the Select rule dropdown and select Environmental Anomaly. Click on the Select condition dropdown and select Equal to.

4. Type Temp* into the Type in your filter value field and select Regex to perform a partial match search. Note that this is case sensitive.

5. Click the Search button.

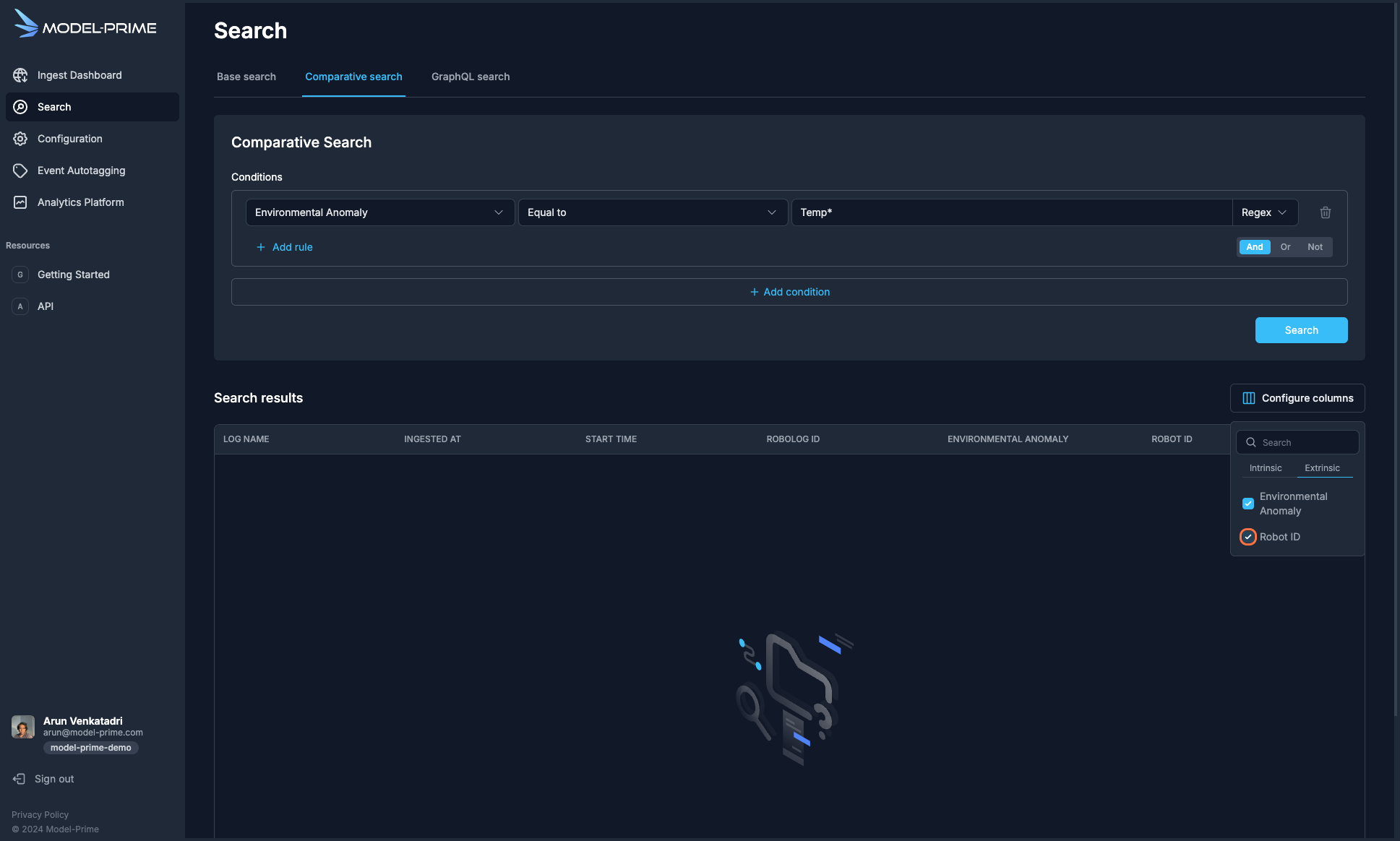

6. In the Search results panel, click on Configure columns.

7. Select the Extrinsic tab.

8. Select Robot ID.

9. Notice that ROBO4000 was also affected by a high temperatures.

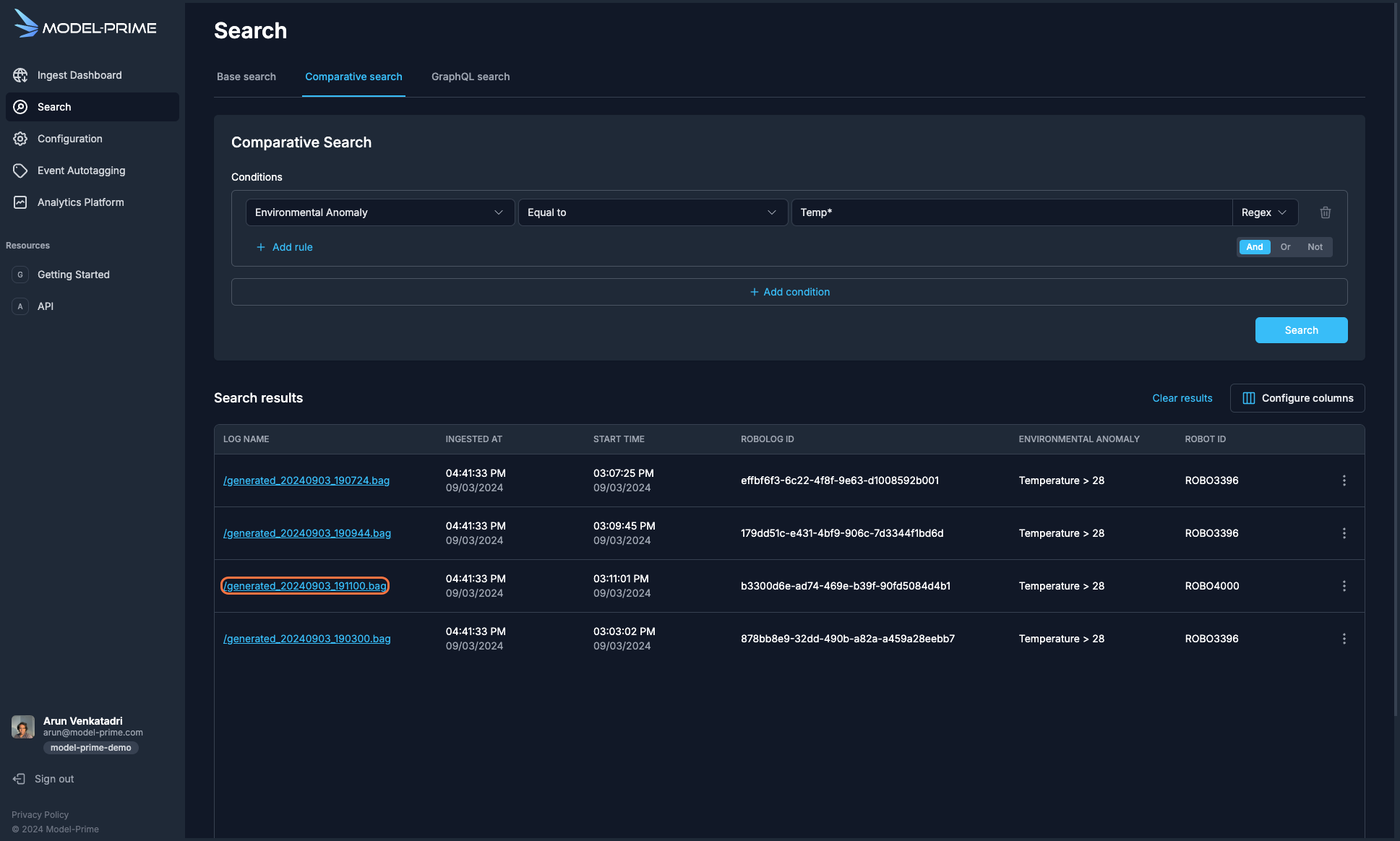

10. Click on the log name to see the log details page and the metadata that was added by the event autotagger.

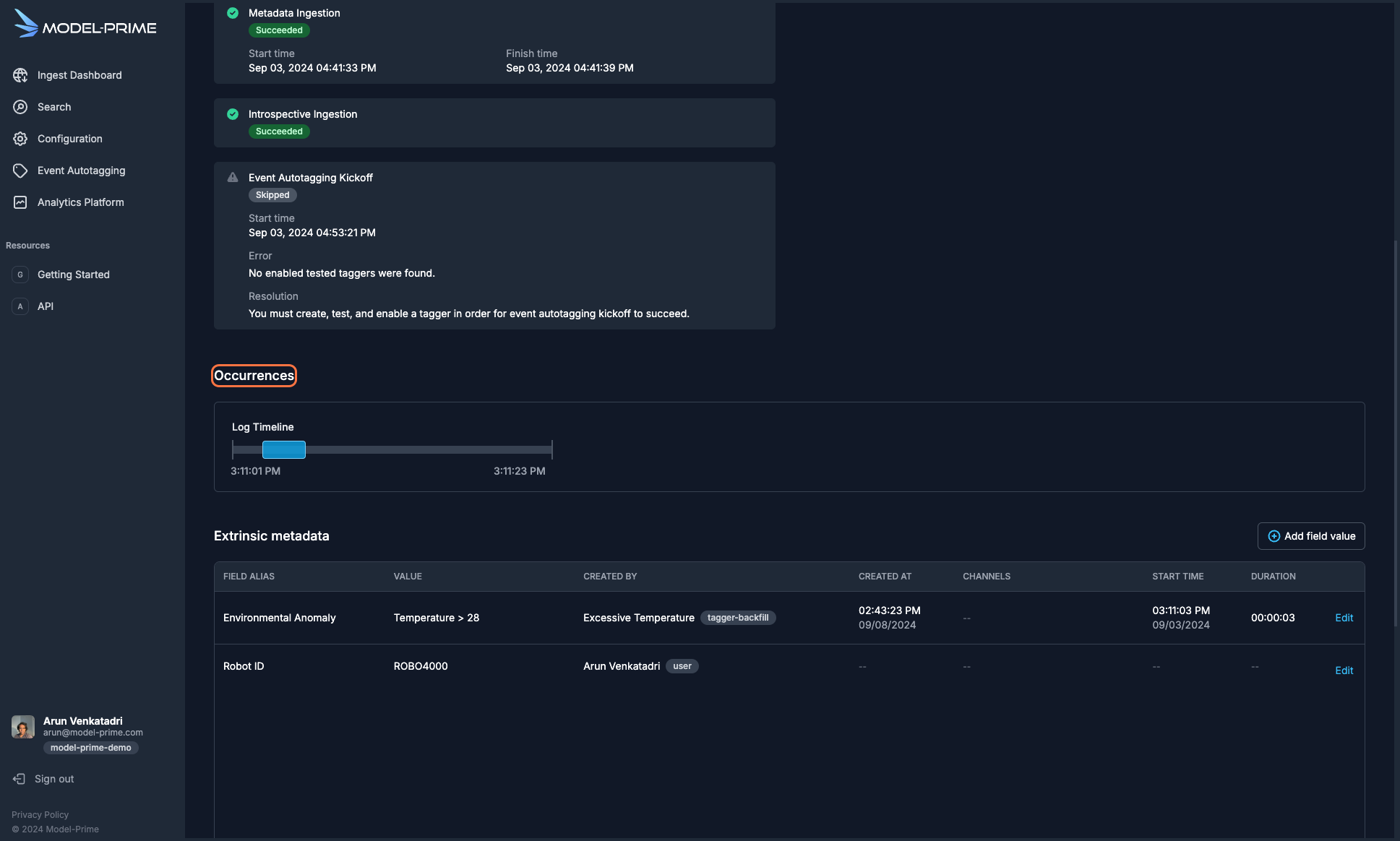

11. Looking at the Occurrences timeline, you can see that this robot encountered a similiar temperature peak and should be inspected for damage to its optical encoder. You can also see the value written by the tagger in the Extrinsic metadata table.
